Name: Olympus PLN 100X Oil Immersion Objective
Brand: Olympus
SKU: 86-816
Price: S$1,885.50

Olympus PLN 100X Oil Immersion Objective

See More by Olympus

#86-816

Stock #86-816

- +

S$1,885.50

Qty 1-4
S$1,885.50

Qty 5+
S$1,792.50

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Compatible Cover Glass Thickness (mm):

N/A

Field of View (mm):

0.22

Focal Length FL (mm):

1.80

Model Number:

1-U2B235

Length excluding Threads (mm):

44.70

Magnification:

100X

Maximum Diameter (mm):

Numerical Aperture NA:

1.25

Mounting Threads:

RMS / 20.32mm x 36 TPI

Compatible Tube Lens Focal Length (mm):

Focal Length: 180mm

Type:

Microscope Objective

Weight (g):

114.0

Working Distance (mm):

0.15

Resolving Power (μm):

0.27

Depth of Field (μm):

0.27

Field Number (mm):

Parfocal Length (mm):

Note:

Recommended Immersion Oil #86-834

Style:

Infinity Corrected

Manufacturer:

Olympus

Immersion Liquid:

Oil

Depth of Focus (μm):

1760

Regulatory Compliance

Certificate of Conformance:

View

Product Family Description

Ideal for Brightfield, Darkfield, or Fluorescence Microscopy
Excellent Price-to-Performance Ratio
Suitable for Introductory and Advanced Optical Microscopy Applications
Additional Olympus Infinity Corrected Objectives Available

Olympus Plan Achromatic Objectives are designed for clinical laboratory or examination applications. When using brightfield observation in a transmitted illumination system, Olympus Plan Achromatic Objectives provide excellent field flatness of up to F.N.22.

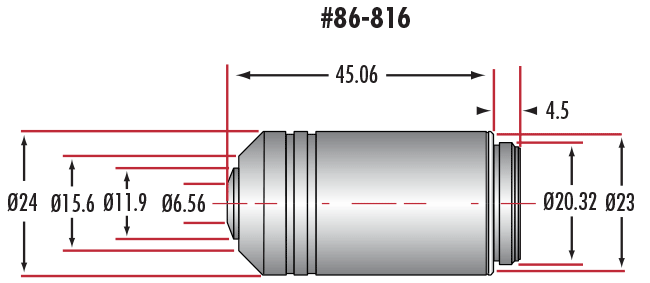

	Stock #	A	B	C	D	E	F	G
PLN 2X	16-879	39.1	3.4	0.0	16.8	16.8	24.0	4.5
PLN 4X	86-812	26.4	4.4	0.0	15.8	15.8	24.0	4.5
PLN 10X	86-813	34.3	4.1	1.6	10.5	16.0	24.0	4.5
PLN 20X	86-814	43.7	4.2	2.4	6.1	15.6	24.0	4.8
PLN 40X	86-815	44.3	4.2	3.0	7.5	15.6	24.0	4.5
PLN 100X	86-816	44.7	4.2	2.5	6.6	15.6	24.0	4.5
