Blue Fluorescent Filter (B), 12.5mm Diameter

×
Stock #84-885
S$260.40
Qty 1-9
S$260.40
Qty 10+
S$230.18
Volume Pricing
Request Quote
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Lumilass
Thickness (mm):
3.00
Thickness Tolerance (mm):
±0.10
Type:
Color Filter
Diameter (mm):
12.50 ±0.10
Glass/Filter Number:
B
Excitation Wavelength (nm):
200 - 400
Coating:
Uncoated
Color:
Blue
Peak Emission Wavelength (nm):
405.00
Index of Refraction nd:
1.477
Peak Excitation Wavelength (nm):
365.00
Minimum Sensitivity:
~1µW/cm2
Transformation Temperature (°C):
398.00

Regulatory Compliance

RoHS:

Product Family Description

  • Wide Range of UV Excitation
  • High Sensitivity and Durability
  • Minimum Sensitivity of ~1 μW/cm2 for All Emissions

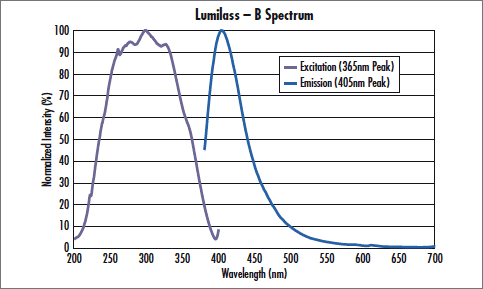

Lumilass Fluorescent Glass Filters absorb UV energy (peak absorption at 365nm) and re-emit light into visible spectrum. Even with a faint UV source (<1 μW/cm2), the high sensitivity of the fluorescent filters allows for visible light detection. Available in Red (R7), Green (G9) and Blue (B) emissions, each Lumilass Fluorescent Glass Filters feature a wide range of excitation wavelengths peaked at 365nm. Applications include fluorescence microscopy, excimer laser detection, and as a standard test material for fluorescence characteristics.
