Name: 9mm Dia x -25mm FL Negative Doublet Lens MgF 2 Coated
Brand: TECHSPEC
SKU: 45-828
Price: S$102.00

9mm Dia x -25mm FL Negative Doublet Lens MgF₂ Coated

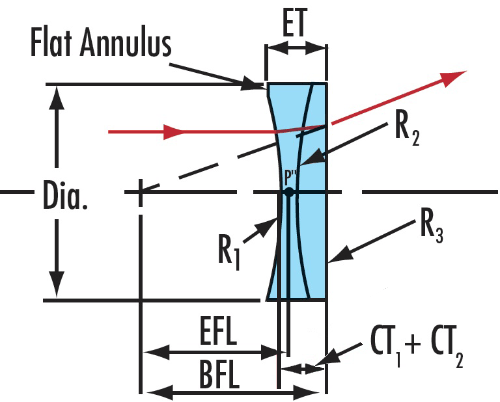

Diameter (mm):

9.00 +0.0/-0.025

Effective Focal Length EFL (mm):

-25.00

Focal Length Tolerance (%):

±2

Back Focal Length BFL (mm):

-27.33

Focal Length Specification Wavelength (nm):

587.6

Clear Aperture CA (mm):

8.1

Centering (arcmin):

Center Thickness CT 1 (mm):

2.00

Center Thickness CT 2 (mm):

2.55

Center Thickness Tolerance (mm):

±0.2

Radius R₁ (mm):

-17.75

Radius R₂ (mm):

12.17

Radius R₃ (mm):

109.75

Edge Thickness ET (mm):

5.13

N-BAF10 / N-SF10

Surface Quality:

40-20

f/#:

2.78

Numerical Aperture NA:

0.18

Coating:

MgF₂ (400-700nm)

Coating Specification:

R_avg ≤1.75% @ 400 - 700nm

Power (P-V) @ 632.8nm:

1.5λ

Irregularity (P-V) @ 632.8nm:

λ/4

Bevel:

Protective bevel as needed

Type:

Negative Achromatic Lens

Wavelength Range (nm):

400 - 700

Regulatory Compliance

RoHS 2015:

Compliant

Reach 211:

Compliant

Certificate of Conformance:

View

Product Family Description

Magnesium Fluoride (MgF₂) Coating
Used to Extend Focal Length
Broadband AR Coated Negative Achromatic Lenses Also Available

TECHSPEC® MgF₂ Coated Negative Achromatic Lenses consist of two optical elements cemented together. Negative doublet lenses are corrected for color and on-axis aberrations. TECHSPEC MgF₂ Coated Negative Achromatic Lenses are used predominantly as Barlow lenses to extend focal lengths. These lenses are often combined with positive achromatic mirror systems and imaging lenses.
