50.0/50.8mm Optic Dia., 5 Axes Optical Mount

5 Axes Optical Mount

5 Axes Optical Mount

5 Axes Optical Mount X-Y Translating Optic Mounts	X-Y-Z Translating Optic Mounts
×
Stock #13-778
- +
S$1,154.75
Qty 1-4
S$1,154.75
Qty 5+
S$1,097.40
Volume Pricing
Request Quote
Get Product Downloads

Specifications

Type:
Adjustable - Linear (XYZ) & Tip-Tilt
Construction:
Black Anodized Aluminum
Type of Optics:
Circular
Size of Compatible Optics (mm):
50.0 - 50.8
Clear Aperture CA (mm):
46.0
Thickness of Compatible Optics (mm):
12.5 (Max)
Travel (mm):
±2.0 in X and Y, ±1.5 in Z
Tip/Tilt Angle (°):
±2
Compatible Post:
M6 x 1.0
Weight (kg):
0.66

Regulatory Compliance

RoHS 2015:
Reach 219:

Learn More

Product Family Description

  • 2-Axis, 3-Axis, and 5-Axis Adjustable Mounts Available
  • Options for 12.5mm (0.5”), 25mm (1”), and 50mm (2”) Dia. Optics
  • M6 Mounting Threads

Multi-Axis Adjustable Optic Mounts can adjust optic positioning along the X- and Y-axes, as well as through optional Z-axis and Tip/Tilt adjustment. Compact packaging allows for fine alignment adjustments without the additional use of bulkier stages. Multi-Axis Adjustable Optic Mounts are ideal for alignment adjustments in prototyping and precision laboratory benchtop optical systems. These mounts include M6 mounting threads making them compatible with our standard Metric Stainless Steel Mounting Posts. A retainer ring and Delrin ring are used together to secure the optic without damaging its surface.

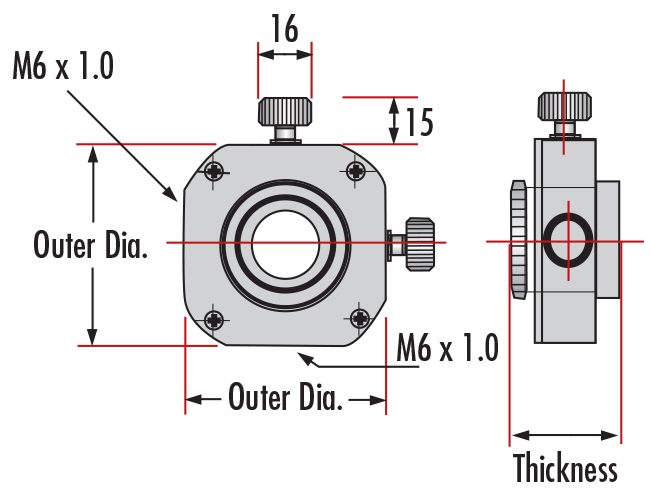

Technical Information

×
