Name: 30mm Dia., 3mm Thick, Uncoated Magnesium Fluoride Window
Brand: TECHSPEC
SKU: 19-921
Price: S$540.00

30mm Dia., 3mm Thick, Uncoated Magnesium Fluoride Window

Magnesium Fluoride (MgF₂) Windows

Stock #19-921

- +

S$540.00

Qty 1-10
S$540.00

Qty 11+
S$486.00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Abbe Number (v_d):

106.22

Bevel:

Protective as needed

Clear Aperture (%):

Clear Aperture CA (mm):

27.00

Diameter (mm):

30.00 +0.0/-0.1

Thickness (mm):

3.00 ±0.1

Coating:

Uncoated

Coefficient of Thermal Expansion CTE (10^-6/°C):

13.7

Density (g/cm³):

3.18

Edges:

Fine Ground

Index of Refraction n_d:

1.377

Knoop Hardness (kg/mm²):

415

Parallelism (arcmin):

Poisson's Ratio:

0.271

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Magnesium Fluoride (MgF₂)

Surface Flatness (P-V):

λ/2

Surface Quality:

40-20

Type:

Protective Window

Wavelength Range (nm):

120 - 7000

Young's Modulus (GPa):

138

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

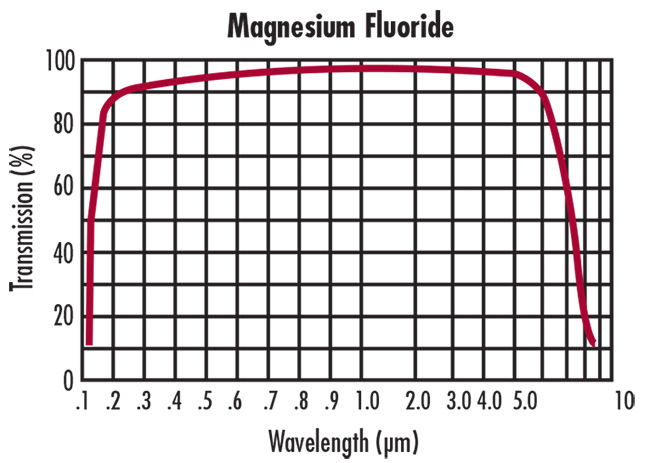

Excellent Transmission from 120nm to 7μm
Rugged and Durable
Resistant to Chemical Etching

TECHSPEC® Magnesium Fluoride (MgF₂) Windows offer excellent broadband transmission from the deep-UV to the mid-infrared. DUV transmission makes them ideal for use at the Hydrogen Lyman-alpha line and for UV radiation sources and receivers, as well as excimer laser applications. MgF₂ is a rugged material resistant to chemical etching, laser damage, and mechanical and thermal shock. It has a Knoop Hardness of 415 and index of refraction of 1.38.
