40X Oil Immersion Objective, Nikon CFI Super Fluor

Volume Pricing
Qty 1+	S$8,218.00 each
Need More?	Request Quote

General

Model Number:

MRF01401

Compatible Tube Lens Focal Length (mm):

Focal Length: 200mm

Type:

Microscope Objective

Style:

Infinity Corrected

Manufacturer:

Nikon

Physical & Mechanical Properties

Field of View (mm):

0.55

Length (mm):

64.80

Length excluding Threads (mm):

59.80

Maximum Diameter (mm):

32

Weight (g):

195

Optical Properties

Compatible Cover Glass Thickness (mm):

0.17

Horizontal Field of View, 1/2" Sensor:

0.16mm

Horizontal Field of View, 2/3" Sensor:

0.22mm

Magnification:

40X

Numerical Aperture NA:

1.30

Working Distance (mm):

0.19

Field Number (mm):

22

Parfocal Length (mm):

60.06

Immersion Liquid:

Oil

Sensor

Maximum Sensor Format:

2/3"

Threading & Mounting

Mounting Threads:

M25 x 0.75

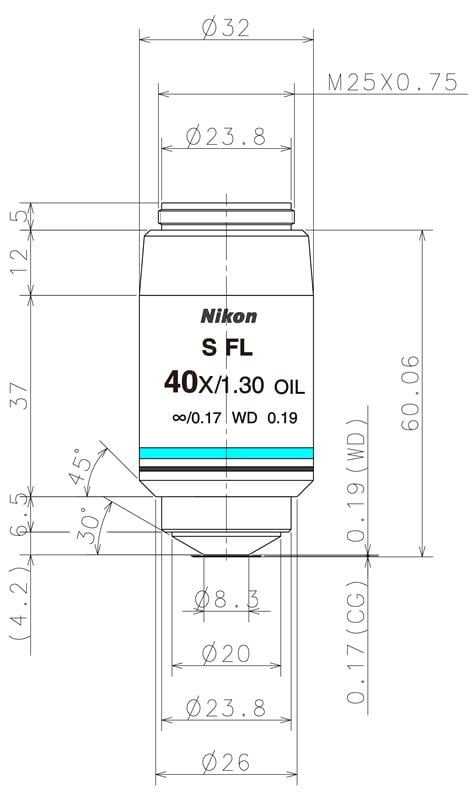

Dimensions (mm)
Stock No.	Magnification	Parfocal Length	A	B	C	D
#75-345	4X	60.06	30.0	44.3	19.7	M25 x 0.75
#88-375	10X	60.06	32.0	58.9	12.0	M25 x 0.75
#88-376	20X	59.90	33.5	58.9	9.0	M25 x 0.75
#75-346	40X	60.06	32.0	59.8	8.3	M25 x 0.75
