12mm Diameter x -15 FL, NIR II Inked, Plano-Concave Lens

Diameter (mm):

12.00 ±0.025

Effective Focal Length EFL (mm):

-15.00

N-SF11

f/#:

1.25

Coating:

NIR II (750-1550nm)

Type:

Plano-Concave Lens

Wavelength Range (nm):

750 - 1550

Back Focal Length BFL (mm):

-16.68

Center Thickness CT (mm):

3.00

Center Thickness Tolerance (mm):

±0.05

Centering (arcmin):

Clear Aperture CA (mm):

11.00

Coating Specification:

R_abs ≤1.5% @ 750 - 800nm
R_abs ≤1.0% @ 800 - 1550nm
R_avg ≤0.7% @ 750 - 1550nm

Edge Thickness ET (mm):

4.47

Focal Length Specification Wavelength (nm):

587.6

Focal Length Tolerance (%):

±1.00

Radius R₁ (mm):

-11.77

Surface Quality:

40-20

Typical Energy Density Limit:

8 J/cm² @ 1064nm, 10ns

Power (P-V) @ 632.8nm:

1.5λ

Irregularity (P-V) @ 632.8nm:

λ/4

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

AR Coated to Provide <0.7% Reflectance per Surface for 750 - 1550nm
Designed for 0° Angle of Incidence
Various Coating Options: Uncoated, MgF₂, VIS 0°, VIS-NIR, YAG-BBAR, and NIR I

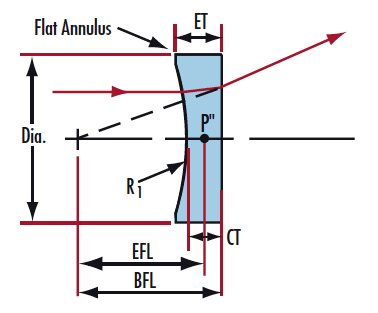

Plano-Concave (PCV) lenses have one flat and one inward curved surface. PCV lenses have a negative focal length and are used for image reduction or to spread light.
