0.75X VariMagTL™ Fixed Magnification Non-Telecentric Lens

0.75X VariMagTL™ Fixed Magnification Non-Telecentric Lens, #87-532

×
Stock #87-532
S$1,100.11
Qty 1+
S$1,100.11
Volume Pricing
Request Quote
Primary Magnification PMAG:
0.75X
Maximum Sensor Format:
2/3"
FOV @ Max Sensor Format, H x V (mm):
11.7 x 8.8
Aperture (f/#):
f/4 - f/22
Working Distance (mm):
74.5
Mount:
C-Mount
Type:
Fixed Magnification Lens
Style:
Non-Telecentric, Fixed Magnification
Coating Specification:
λ/4 MgF2 @ 550nm
Filter Thread:
M25.5 x 0.50 (Female)

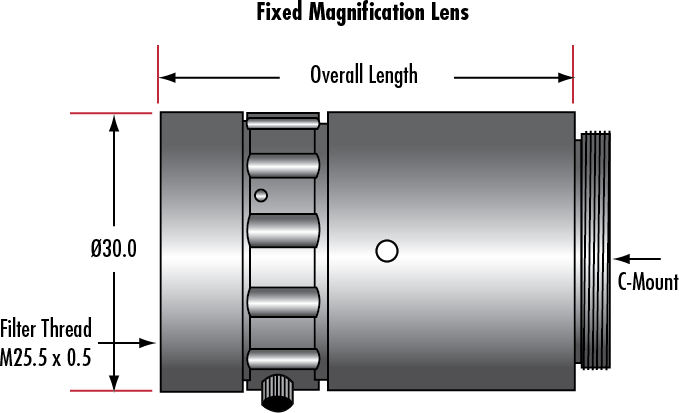

Length (mm):
65.80
Maximum Diameter (mm):
30
Number of Elements (Groups):
5 (4)
Numerical Aperture NA, Object Side:
0.0488
Resolution:
75 lp/mm @ >20%
Typical Distortion @ 588nm (%):
<0.02

Regulatory Compliance

RoHS:

Product Family Description

  • Variable Magnification Telecentric Lens
  • Up to 5 MegaPixels, 3.45μm Pixel Size Sensors
  • 2/3", C-Mount Telecentric Lens
  • Magnification from 0.15X to 3X

TECHSPEC® VariMagTL Telecentric Lenses are designed for applications that may require constant adjustment of a system’s field of view. Each lens provides a range of magnifications that users can adjust or lock down with a set screw. With coverage for up to 2/3” format sensors, these telecentric lenses feature compact, C-mount compatible designs for easy system integration. TECHSPEC VariMagTL Telecentric Lenses also include an adjustable iris to control light throughput and improve image quality. These lenses are ideal for use in semiconductor or electronics inspection and factory automation applications.

Note: Customized fixed versions are also available to meet volume requirements. Please contact technical support to discuss your specific requirements.
