Name: 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens
Brand: TECHSPEC
SKU: 16-748
Price: S$6,206.00

0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens

PlatinumTL™ Telecentric Lenses

Stock #16-748 3-5 days

- +

S$6,206.00

Qty 1+
S$6,206.00

Volume Pricing
Request Quote

+ Add to Saved List
Create an account or log in to access saved list

Compare

Get Product Downloads

Field of View, 28.7mm Sensor:

102.5mm

Iris Option:

Variable

Length (mm):

196.12

Horizontal Field of View, 1/2" Sensor:

22.9mm

Horizontal Field of View, 2/3" Sensor:

31.8mm

Filter Thread:

M132 x 0.75 (Female)

Maximum Diameter (mm):

138.6

Horizontal Field of View, 1" Sensor:

45.7mm

Maximum Image Circle (mm):

28.70

Numerical Aperture NA, Object Side:

0.023

Stock No. of Mounting Clamp:

#63-440 Sold Separately

Flange Distance (mm):

17.5

Horizontal Field of View, 4/3" Sensor:

61.8mm

Horizontal Field of View, 1.1" Sensor:

50.7mm

Number of Elements (Groups):

10 (7)

Typical Telecentricity @ 588nm (°):

<0.035

Typical Distortion @ 588nm (%):

<0.012

Type:

Telecentric Lens

Primary Magnification PMAG:

0.28X

Maximum Sensor Format:

APS-C

Working Distance (mm):

182.00

Mount:

TFL-Mount

Aperture (f/#):

f/6 - f/22

Coating:

425 - 675nm BBAR

Depth of Field (mm):

±6.9 at f/10 (20% @ 20 lp/mm)

Horizontal Field of View, APS-C Sensor:

80.0mm

FOV @ Max Sensor Format, H x V (mm):

80.0 x 60.0

Lens Wavelength Range:

VIS

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 240:

Compliant

Product Family Description

High Resolution f/6 Bi-Telecentric Lens for Measurement
Up to 35 MegaPixels, 2.8μm Pixel Size Sensors
APS-C, C-Mount, T-Mount, F-Mount Telecentric Lens
Magnification from 0.28X to 1.7X

TECHSPEC® PlatinumTL™ Telecentric Lenses are designed for semiconductor and electronics inspection, measurement, and gauging applications. The precision designs feature high telecentricity (<0.1°), low distortion (<0.1%), and high light throughput with an adjustable aperture that achieves f/6 when fully open. Capable of supporting large format 28.7mm diagonal sensors, these lenses are compatible with the Sony IMX342 APS-C sensor and other similar format sensors such as the Sony IMX530. TECHSPEC® PlatinumTL™ Telecentric Lenses produce unparalleled levels of contrast yielding maximum image quality with the highest degree of measurement accuracy. These lenses are suitable for high vibration environments and feature a removable recessed set screw for securing the iris in place.

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Distortion Plot

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Relative Illumination Plot

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Telecentricity Plot

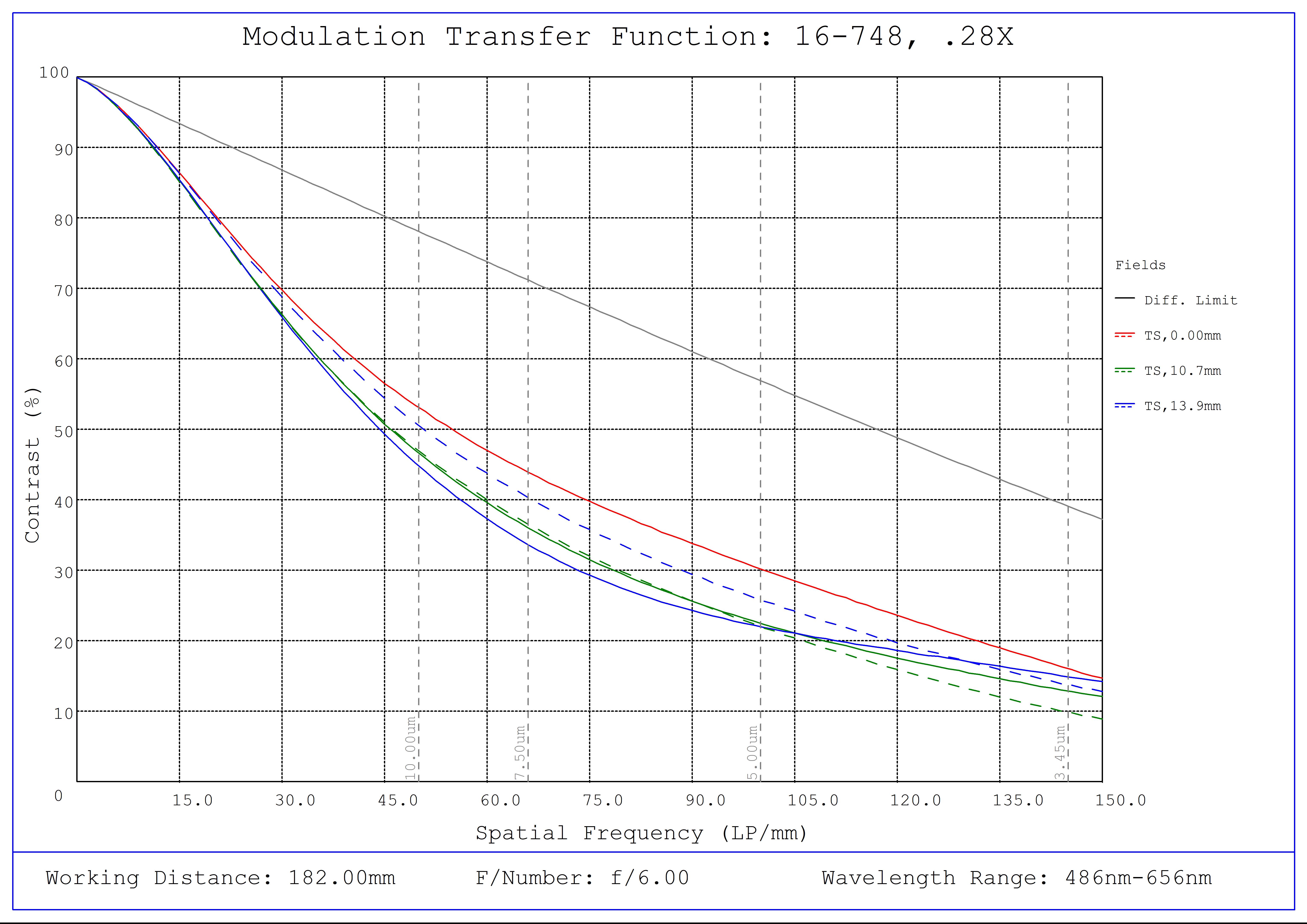

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Modulated Transfer Function (MTF) Plot, 182mm Working Distance, f6

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Depth of Field Plot, 182mm Working Distance, f6

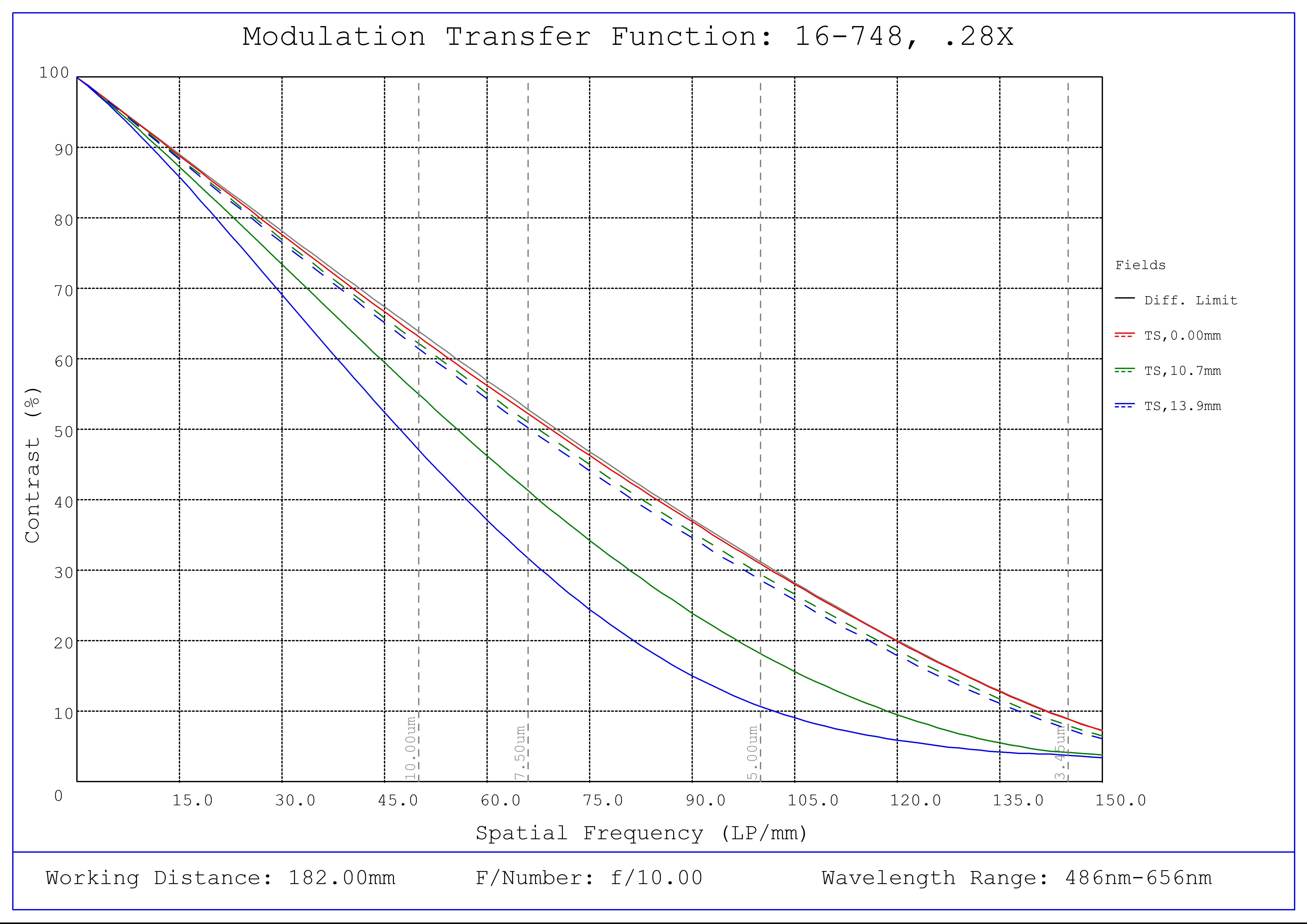

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Modulated Transfer Function (MTF) Plot, 182mm Working Distance, f10

#16-748, 0.28X, 28.7mm TFL-Mount PlatinumTL™ Telecentric Lens, Depth of Field Plot, 182mm Working Distance, f10

Technical Information


Description		Stock No.	Flange	Length (A)	Front Diameter (B)	Back Diameter (C)
0.28X	C-Mount	#62-933	17.5mm	230.8mm	60.5mm	33.5mm
0.5X	C-Mount	#62-932	17.5mm	174.9mm	50mm	33.5mm
1.7X	C-Mount	#63-232	17.5mm	189.5mm	60mm	46mm
0.28X	F-Mount	#62-922	46.5mm	167.6mm	138.6mm	55mm
	M42 x 1.0	#62-923	6.56mm	208.5mm	138.6mm	50mm
	M42 x 1.0	#62-924	19.53mm	195.5mm	138.6mm	50mm
0.5X	F-Mount	#62-912	46.5mm	143mm	90mm	55mm
	M42 x 1.0	#62-913	6.56mm	184mm	90mm	50mm
	M42 x 1.0	#62-914	19.53mm	171.1mm	90mm	50mm
0.9X	F-Mount	#62-902	46.5mm	170.8mm	65mm	55mm
	M42 x 1.0	#62-903	6.56mm	210.7mm	65mm	53mm
	M42 x 1.0	#62-904	19.53mm	197.8mm	65mm	53mm
