Products / Optics / Optical Mirrors / Laser Line Mirrors / Diode Laser Line Mirrors
See all 11 Products in Family
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

12.5mm Dia 1480nm 45°, Laser Diode Mirror

×
Stock #47-002 Clearance
×
S$114.70
×
Qty 1+
S$114.70
Volume Pricing
Request Quote
Surface Quality:
10-5
Type:
Laser Mirror
Parallelism (arcmin):
<3
Clear Aperture (%):
>90
Back Surface:
Ground
Reflection at DWL (%):
99.8

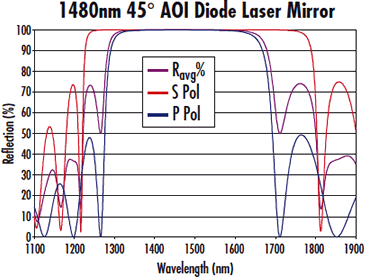

Coating Specification:
Rabs >99.8% @ 1480nm
Ravg >98% @ 1376 - 1584nm
Wavelength Range (nm):
1376 - 1584
Surface Flatness:
λ/10
Coating Type:
Dielectric
Coating:
Dielectric Mirror (1376-1584nm)
Design Wavelength DWL (nm):
1480
Diameter (mm):
12.50 +0.0/-0.2
Thickness (mm):
6.00 ±0.2
Angle of Incidence (°):
45
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Fused Silica

Regulatory Compliance

RoHS:
Compliant
×

Product Family Description

  • >99.8% Reflectivity at Design Wavelengths
  • Excellent Broadband Performance for Range of Wavelengths
  • Designed for Common Diode Lasers

TECHSPEC® Diode Laser Line Mirrors are designed to offer high reflection for the most common diode laser wavelengths. Designed for a 0° or 45° angle of incidence, these mirrors are ideal for beam-steering and folding applications.

Our line of TECHSPEC® laser line mirrors are specially designed for even the most demanding laser applications. Combining laser-quality substrates of up to 10-5 surface quality, with a dense reflective coating, and a damage threshold specific to the laser type and wavelength, these mirrors are ideal for a wide range of applications requiring precision reflectivity and incredible durability. All TECHSPEC® laser line mirrors are designed to minimize scatter loss and to be easily mounted into any optical system.
