Name: 12.7mm Dia. Silver, Precision Broadband Laser Mirror
Brand: TECHSPEC
SKU: 45-757
Price: S$181.50

Surface Quality:

20-10

Type:

Laser Mirror

Clear Aperture (%):

>80

Durability:

MIL-M-13508-C

Back Surface:

Ground

Coating Specification:

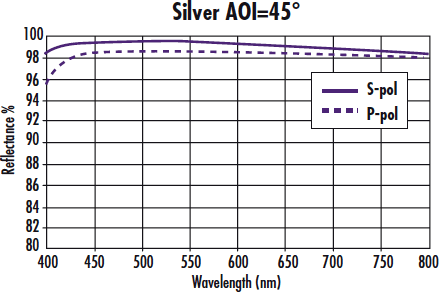

R_avg >98% @ 0.45 - 12.0μm

Wavelength Range (nm):

450 - 12000

Surface Flatness (P-V):

λ/20

Coating Type:

Metal

Damage Threshold, Pulsed:

0.5 J/cm² @ 10ns

Coating:

Protected Silver (450-12000nm)

Diameter (mm):

12.70 +0.0/-0.2

Thickness (mm):

5.00 ±0.1

Angle of Incidence (°):

0-45

BOROFLOAT^®

Note:

Optical Power: λ/10

0.5 J/cm² @ 10ns

Regulatory Compliance

RoHS 2015:

Compliant

REACH 201:

Compliant

Certificate of Conformance:

View

Product Family Description

Ideal for Tunable Lasers and Reflecting Multiple Laser Sources
High Reflectivity from 0 - 45° for All Polarization States
Variety of Coating Options Available

TECHSPEC® Precision Broadband Laser Mirrors feature high reflectivity and are ideal for UV, visible, and NIR beam steering applications. The broadband dielectric enhanced silver coatings feature >98% reflectivity from 450nm to 12μm wavelengths at incident angles from 0 - 45°. These mirrors meet MIL-M-13508-C durability standards. TECHSPEC® Precision Broadband Laser Mirrors are ideal for demanding laser applications requiring high laser damage thresholds including laser scanning and beam steering.
