30mm Focal Length f/4, Relay Lens

TECHSPEC Relay Lenses

TECHSPEC Relay Lenses

Stock #45-759
S$520.00
Qty 1-5
S$520.00
Qty 6-25
S$416.00
Qty 26+
Request a Quote
Number of Lenses:
10
Aperture (f/#):
f/4
Diameter (mm):
21.00
Effective Focal Length EFL (mm):
30.00
Field of View, 2/3" Sensor:
11.00mm
Image Distance (mm):
19.20
Length (mm):
48.90
Maximum Sensor Format:
2/3"
Object to Image Track Length (mm):
87.30
Type:
Relay Lens
Object Distance (mm):
19.20
RoHS:
Exempt
×

Product Family Description

  • Optimized for 1:1 Imaging
  • f/4 and f/8 Versions Available

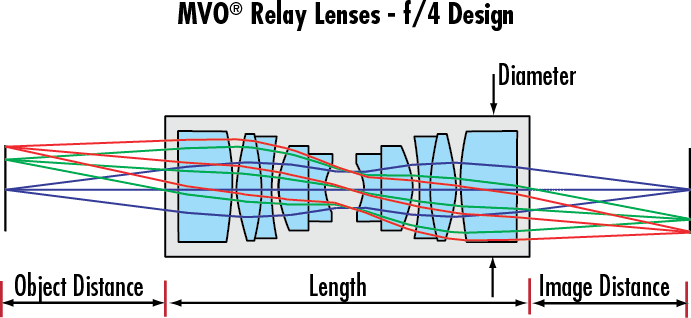

Designed for many of today’s electronic imaging applications, our mounted relay lenses offer superior performance in a compact package. These lenses are ideal for designers who are building relay systems for photomultiplier tubes, inspection applications, and nearly any 1:1 imaging application. Field coverage goes up to 8mm diameter (specified on a ½" diagonal sensor) for the 15mm fl and 11mm diameter for the 30mm and 45mm fl versions. Barrel diameters have been kept to a minimum for easy integration. Distance values listed in the table are from the end of the housing.

Prescription information available upon request.
