TECHSPEC 200mm Diameter x 6.5mm Thickness, Uncoated, BOROFLOAT® Window

Stock #45-686
S$111.20
×
Qty 1-5
S$111.20
Qty 6
S$88.96
Volume Pricing
Request a Quote
Abbe Number (vd):
65.41
Bevel:
Protective as needed
Clear Aperture (%):
≥90
Diameter (mm):
200.00 ±0.5
Thickness (mm):
6.50
Coating:
Uncoated
Coefficient of Thermal Expansion CTE (10-6/°C):
3.25
Density (g/cm3):
2.2
Edges:
Ground Edges
Index of Refraction nd:
1.472
Modulus of Elasticity (kN/mm2):
64
Operating Temperature (°C):
1 hour @ 500; >100 hours @ 450
Poisson's Ratio:
0.2
Stress-Optical Coefficient (mm2/N):
4 x 10-6
Substrate:
BOROFLOAT®
Surface Flatness:
4 - 6λ
Surface Quality:
80-50
Thickness Tolerance (mm):
±0.2
Transformation Temperature (°C):
525

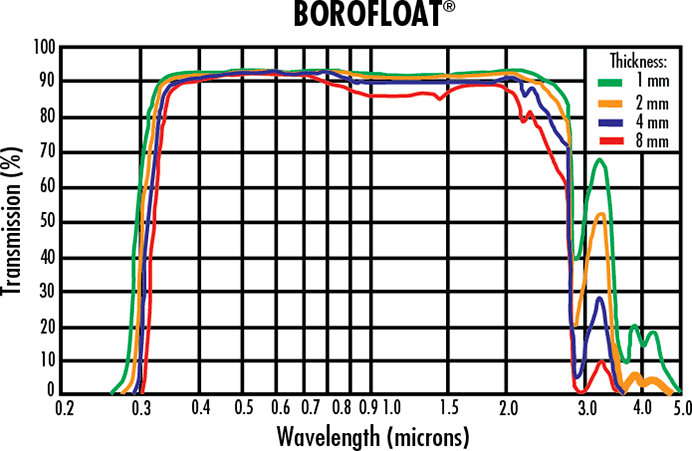

Transmission (%):
90
Type:
Protective Window
Wavelength Range (nm):
350 - 2000

Regulatory Compliance

Reach 191:
RoHS 2015:

Product Family Description

  • Low Coefficient of Expansion
  • Visible to Near Infrared Transmission
  • High Resistance to Thermal Shock

BOROFLOAT® Borosilicate Windows are ideal for high temperature and harsh environment applications. Unlike common borosilicate that is drawn flat, BOROFLOAT® is produced by a float technique that yields superior surface flatness — typically 4 - 6λ per inch. BOROFLOAT® is about three times more resistant to thermal shock than standard soda lime glass.
